Machining Equipment List
Every tolerance we quote has to be held by a real machine. Below is the full Hanstar equipment list as of 2026 — CNC machining, die casting, injection molding and inspection — with the model, quantity and rated accuracy of each group.
CNC Machining Equipment

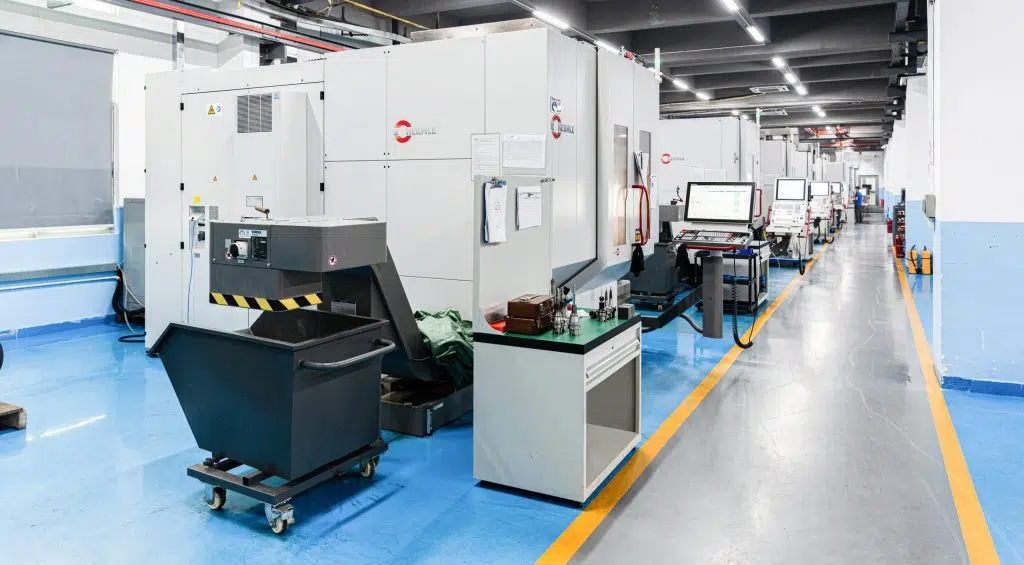

Machining is the core of the shop: nine five-axis centers for complex geometry, 49 three- and four-axis machining centers for production volume, and 20 CNC lathes for turned parts — 99 machines in total.
- 9 five-axis machining centers, five of them turn-mill
- 20 CNC lathes for turned and shaft-type parts
- Equipment accuracy down to ±0.002 mm
- Supporting grinding, drilling and tapping machines on site
| # | Machine | Model / Type | Qty (set) | Brand | Accuracy (mm) |
|---|---|---|---|---|---|
| 1 | 5-Axis CNC Machining Center | C22U | 1 | Hermle (Germany) | ±0.002 |
| 2 | 5-Axis CNC Machining Center | C42U | 2 | Hermle (Germany) | ±0.002 |
| 3 | 5-Axis CNC Machining Center (turn-mill) | C42UMT | 2 | Hermle (Germany) | ±0.002 |
| 4 | 5-Axis CNC Machining Center (turn-mill) | C52UMT | 2 | Hermle (Germany) | ±0.002 |
| 5 | 5-Axis CNC Machining Center (turn-mill) | C62UMT | 1 | Hermle (Germany) | ±0.002 |
| 6 | 5-Axis CNC Machining Center | Mikron MILL E 500U | 1 | +GF+ | ±0.002 |
| 7 | CNC Machining Center | HEP-2150 | 5 | Hartford (Taiwan) | ±0.01 |
| 8 | CNC Machining Center | LG-1000 | 5 | Hartford (Taiwan) | ±0.01 |
| 9 | CNC Machining Center | LG-800 | 5 | Hartford (Taiwan) | ±0.01 |
| 10 | CNC Machining Center | LG-500 | 8 | Hartford (Taiwan) | ±0.01 |
| 11 | CNC Machining Center | 640 | 5 | Kejie (China) | ±0.02 |
| 12 | CNC Machining Center | DT400 | 5 | Doosan (Korea) | ±0.01 |
| 13 | CNC Machining Center | α-D14MIA / α-D21 | 16 | FANUC (Japan) | ±0.01 |
| 14 | CNC Lathe | L250E | 10 | Okuma (Japan) | ±0.01 |
| 15 | CNC Lathe | NEX110 | 10 | Takisawa (Japan) | ±0.01 |
| 16 | Surface Grinding Machine | — | 1 | Rongxie | ±0.01 |
| 17 | Drilling Machine | — | 10 | The West Lake | — |
| 18 | Tapping Machine | — | 10 | The West Lake | — |
| Total machining equipment | 99 | 9 five-axis · 49 machining centers · 20 lathes · 21 supporting machines | |||
Swipe the table sideways to see every column.
Die Casting Equipment
Eight die casting machines from Toshiba, Bühler and IMPRESS run the Dongguan cell, casting aluminium, zinc and magnesium alloys that then move straight into our own machining and surface finishing lines.
- 8 die casting machines, hot- and cold-chamber
- Alloys: aluminium, zinc and magnesium
- Toshiba and Bühler cells rated to ±0.01 mm
- In-house machining and surface finishing after casting
| # | Machine | Model / Type | Qty (set) | Brand | Accuracy (mm) |
|---|---|---|---|---|---|
| 1 | Die Casting Machine | DC135J-SX | 2 | Toshiba | ±0.01 |
| 2 | Die Casting Machine | DC250J-SX | 1 | Toshiba | ±0.01 |
| 3 | Die Casting Machine | DC350J-SX | 1 | Toshiba | ±0.01 |
| 4 | Die Casting Machine | Evolution 260 | 2 | Bühler | ±0.01 |
| 5 | Die Casting Machine | LPC 1000 | 2 | IMPRESS | ±0.02 |
| Total die casting machines | 8 | Toshiba · Bühler · IMPRESS | |||
Swipe the table sideways to see every column.
Injection Molding Equipment

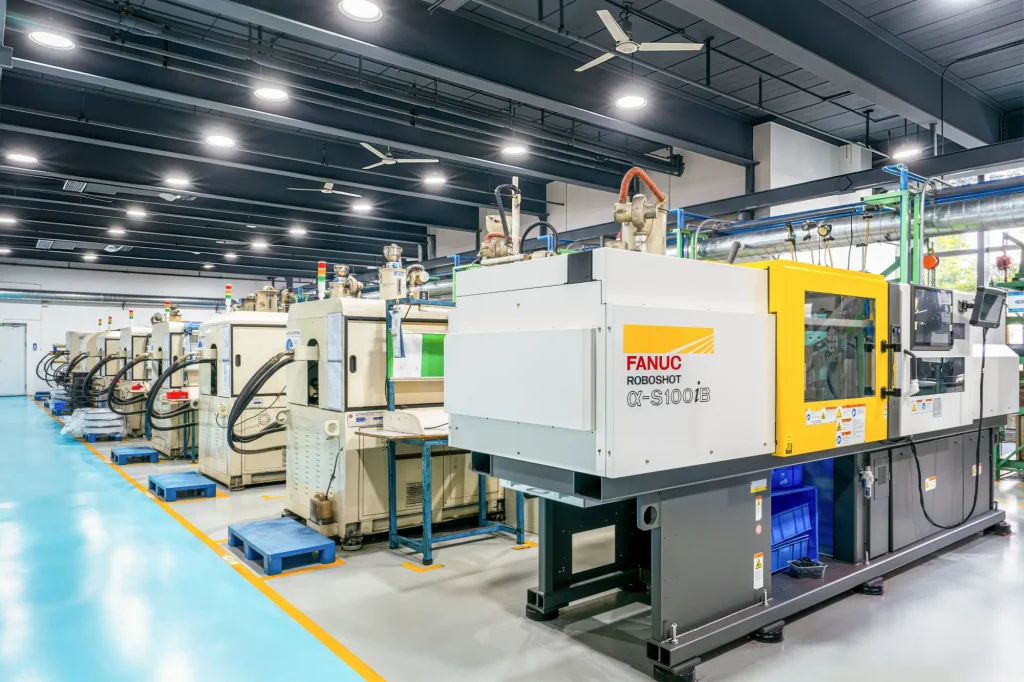

Eighteen machines from Haitian, Yizumi, Chen Hsong, Bolead and FANUC cover engineering plastics and glass-fibre reinforced grades, with the all-electric ROBOSHOT cell reserved for the tightest walls and the smallest tolerances.
- 18 injection molding machines
- All-electric FANUC ROBOSHOT rated to ±0.01 mm
- Engineering plastics, glass-fibre reinforced and overmolding
- Material reports supplied per production lot
| # | Machine | Model / Type | Qty (set) | Brand | Accuracy (mm) |
|---|---|---|---|---|---|
| 1 | Injection Molding Machine | MA3200 | 3 | Haitian | ±0.03 |
| 2 | Injection Molding Machine | UN200A2 | 3 | Yizumi | ±0.03 |
| 3 | Injection Molding Machine | UN650A5S | 4 | Yizumi | ±0.03 |
| 4 | Injection Molding Machine | JM120 | 4 | Chen Hsong | ±0.03 |
| 5 | Injection Molding Machine | EM220 | 2 | Chen Hsong | ±0.02 |
| 6 | Injection Molding Machine | BU60 | 1 | Bolead | ±0.03 |
| 7 | Injection Molding Machine (all-electric) | FANUC ROBOSHOT α-S450iA | 1 | FANUC | ±0.01 |
| Total injection molding machines | 18 | Haitian · Yizumi · Chen Hsong · Bolead · FANUC | |||
Swipe the table sideways to see every column.
Inspection Equipment

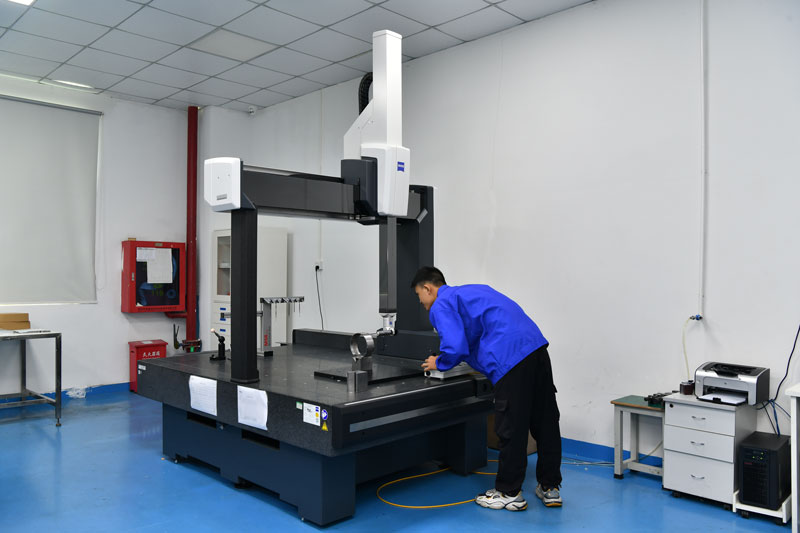

Inspection is where the tolerance claim is actually proven. Two Zeiss CMMs handle first-article and in-process dimensional checks, a Hexagon arm covers large and awkward parts, and the bench carries a full set of hand gauges for thread, bore and surface checks.
- 0.001 mm resolution on the Zeiss CMMs
- Hexagon Absolute Arm 8535 for large and on-machine parts
- Vision measuring system and Rockwell hardness tester
- Full gauge set for thread, bore, radius and angle checks
| # | Instrument | Model / Type | Qty (set) | Brand | Accuracy (mm) |
|---|---|---|---|---|---|
| 1 | Portable Measuring Arm | Absolute Arm 8535 | 1 | Hexagon | 0.006 |
| 2 | Coordinate Measuring Machine | CONTURA 12/18/8 RDS | 2 | Zeiss | 0.001 |
| 3 | Vision Measuring System | VMS-3020G | 2 | Wanhao | 0.01 |
| 4 | Rockwell Hardness Tester | HR-150A | 2 | — | — |
| 5 | Inside Micrometer | — | 3 | Mitutoyo | — |
| Total measuring instruments | 10 | Zeiss · Hexagon · Mitutoyo · Wanhao | |||
Swipe the table sideways to see every column.
Also in daily use on the inspection bench — 15 further gauge types held at the Shenzhen plant:
